GENERATOR AUTOMATION / FIELD CONTROLS
MED-805B AUTO-START CONTROLS

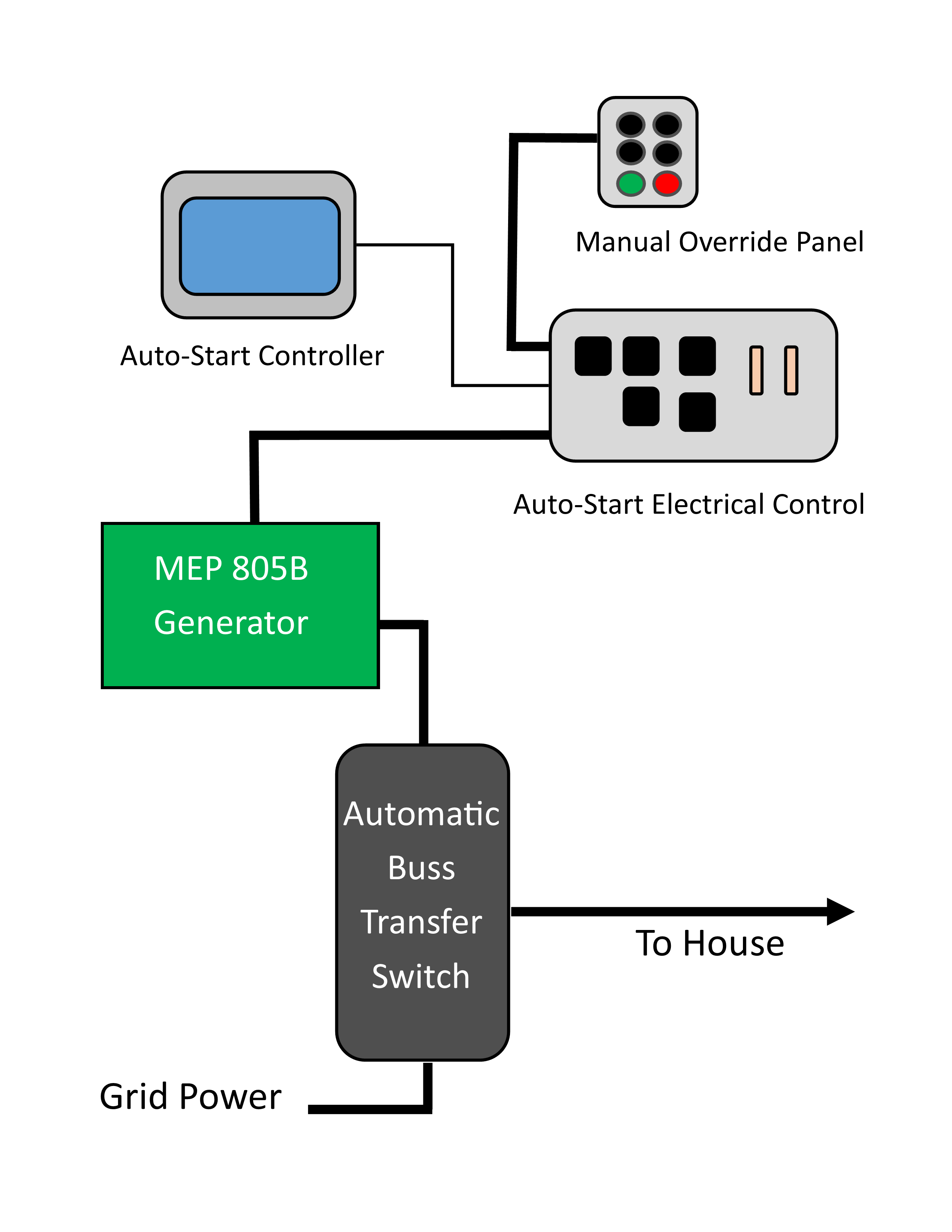

A practical generator control package built around CODESYS automation, clear operator screens, documented wiring, and deterministic start/stop sequencing for MED/MEP-805B field power applications.
WHAT THE PACKAGE COVERS
CONTROLS THAT MAKE FIELD POWER OPERATION CLEARER
AUTO-START SEQUENCING
Defined start, stop, power confirmation, system-starting, running, and shutdown states so operators can move through generator procedures with fewer ambiguous steps.
CODESYS CONTROL LAYER
Project files, compiled application artifacts, and a Raspberry Pi CODESYS control package provide a recoverable software base for modernization or rebuild work.
DOCUMENTED HARDWARE
Schematics, GPIO mapping, box layout, and wiring imagery turn a one-off build into a supportable controls asset that can be reviewed, maintained, and improved.
ENGINEERING ARTIFACTS
FROM SCHEMATIC TO OPERATOR SCREEN
CONTROL DIAGRAMS

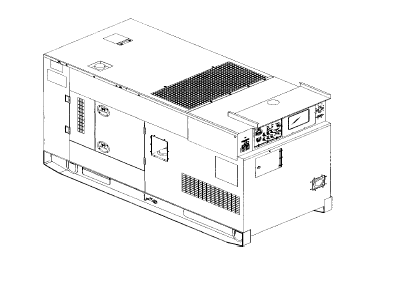

Generator schematic PDFs and panel drawings support review, retrofit planning, and field service handoff.
HMI SCREEN STATES

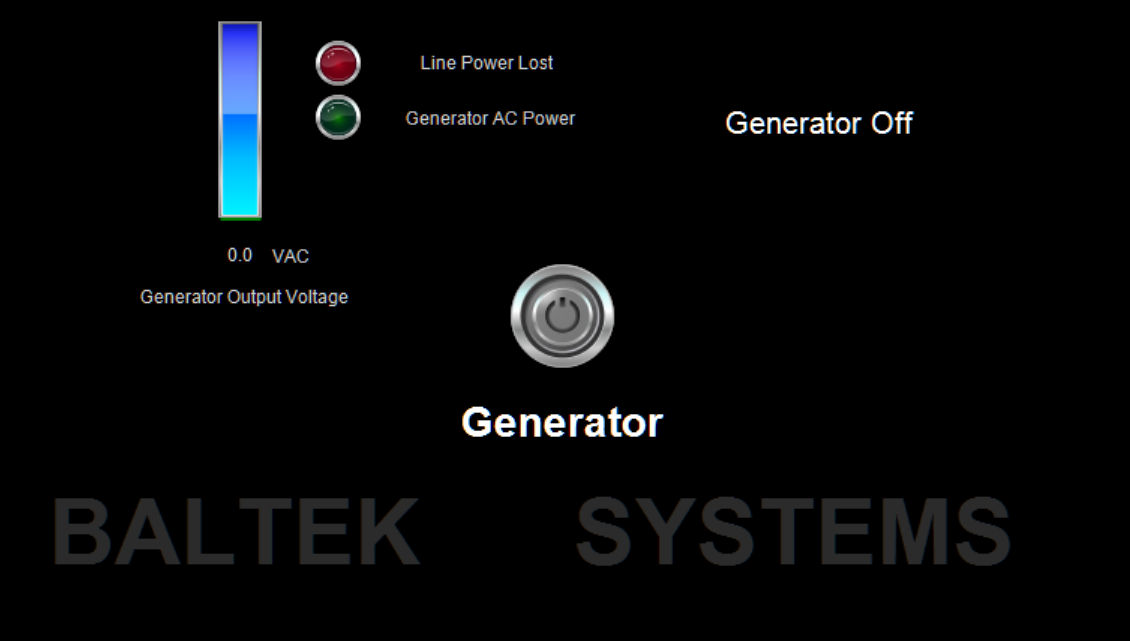

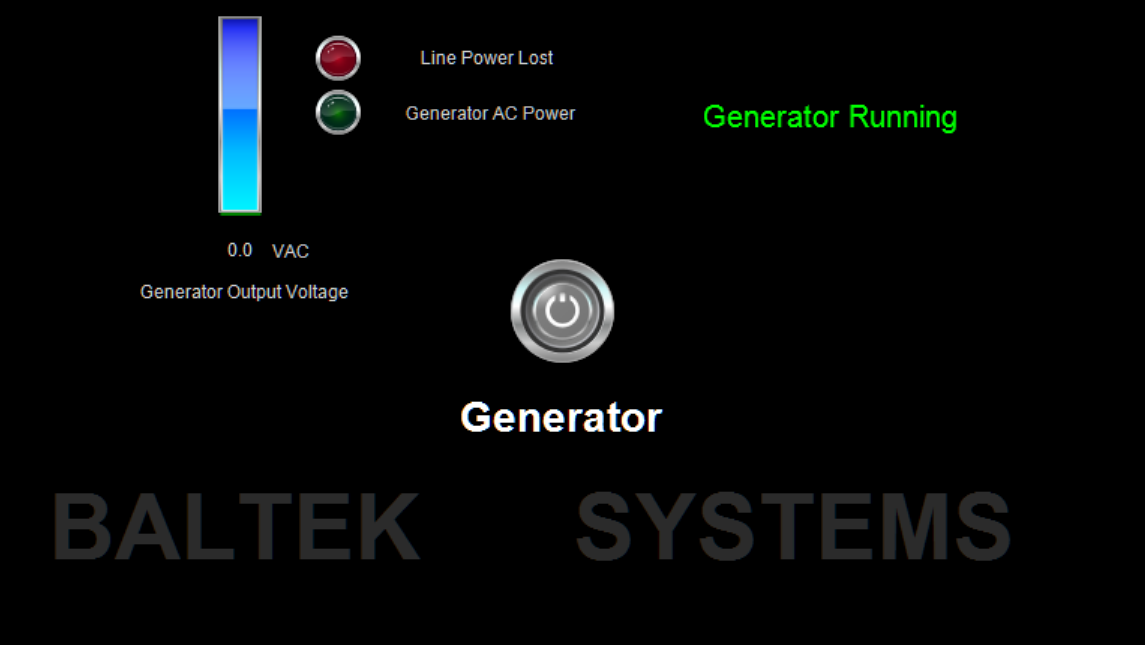

Main page, start confirmation, power confirmation, running, and shutdown screens map system behavior to operator decisions.
RECOVERABLE PROJECT FILES
The extracted package includes CODESYS project files, recovery files, boot information, compile information, and user option files.
WHY IT MATTERS
LEGACY EQUIPMENT DOES NOT NEED LEGACY OPERATIONS
REDUCE STARTUP FRICTION
Make the correct next step visible to the operator.
STANDARDIZE HANDOFF
Keep diagrams, logic, and HMI behavior tied together.
IMPROVE SUPPORTABILITY
Use documented controls assets for service and rebuild work.
MODERNIZE SELECTIVELY
Upgrade operator and control behavior without replacing the generator platform.
BALTEK SYSTEMS
GENERATOR, PLC, HMI, AND FIELD CONTROLS WORK
If you have a generator, panel, control box, or field power system that needs automation, documentation, or modernization, Baltek can scope the controls work and produce practical deliverables.
START A CONVERSATION
